as c

PASSIVE/Bi-amp. module line array 2 x 6 " + 1"

85Hz - 19k Hz (+/- 3dB)

Neodymium Components

110° Horizontal dispersion

500W AES

16.5Kg

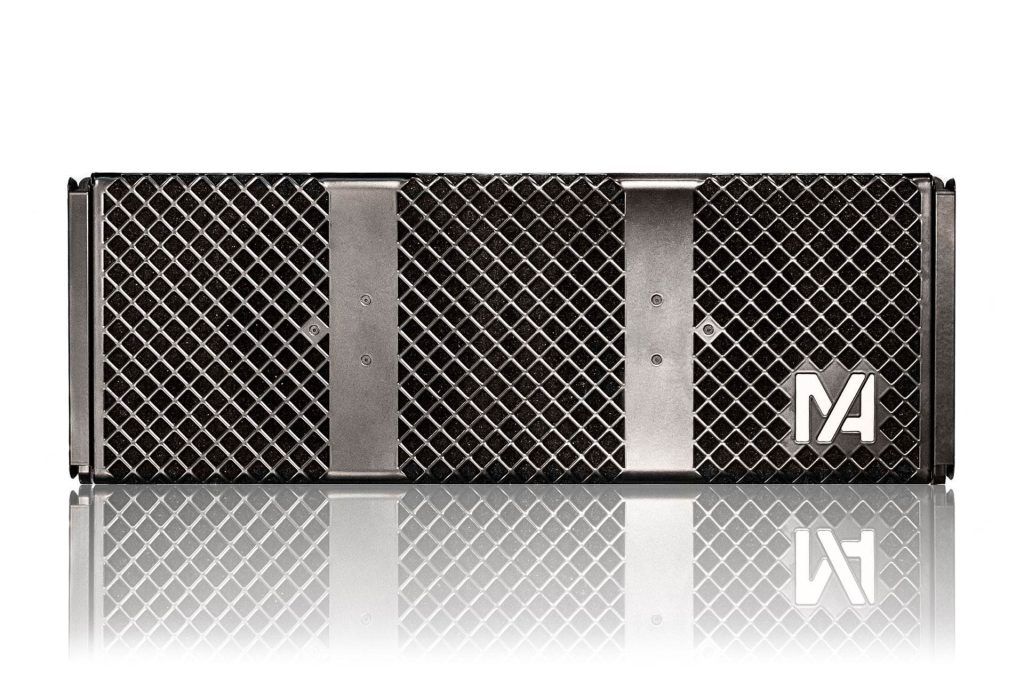

The AS-C is a passive line array unit that houses two 6″ Neo loudspeakers (MF) and a 1″ hf motor.

Designed to work in combination with other AS-C units, in mixed arrangements with other models in the AS range or as a stand-alone full-range system.

With a front end arrangement of internal MF components that contributes to excellent phase linearity, the AS-C guarantees a coherent response from 85 Hz, produces a cylindrical wavefront with excellent 110 degree horizontal dispersion, high Spl in comparison to other boxes of its size and an exceptionally intelligible and warm sound.

All these features make the AS-C especially suitable for short and medium range FOH applications, and in long range applications as a complement to the AS-X operating in down, out, front or side field mode.

Each AS-C unit is made of Finnish Birch plywood, finished in fireproof Epoxy paint in matt black, with stainless steel screws and with the components protected by a specially designed and laser-cut steel grill, the AS-C It’s ready to withstand the elements with an IP 45 rating.

As in other models in the range, the AS-C has a large number of accessories for flying, staking and transport; as well as a RAL color chart to choose from, which complete a practical and versatile product.

ESPECIFICAtions ASC

Frequency response

85 Hz-19.000 Hz (+- 3Db)

Impedance

16Ω

Impedance

500W AES

SPL continuous*/peak**

124/136Db

Configuration

2 x 6 " + 1 "

Horizontal nominal coverage​

110º

Vertical coverage

14º

Connection

2 x 4 polos Speakon Neutrik®

High

207mm

Width

580mm.

Depth

339,5mm.

Weight Kg

16,5Kg

Construction

Finnish Birch Plywood 15mm

Rack

Laser perforated steel and acoustic foam

Angulation

1st to 5th in 1st steps

Rigging

4 attachment points

Finish

Matt black fireproof epoxy

Options

RAL color chart, flying accessories, flight case

15mm Finnish birch plywood

**: Peak SPL measured with pink noise and crest factor 4

OUR AS SERIES, CONCEIVED AND CREATED TO BE FLEXIBLE IN ALL TYPES OF FOH APPLICATIONS

A family made up of the AS-X and AS-C models, intended for the treatment of medium and high frequencies; and, secondly, the AS-SUB and AS-SUB2 models, which are responsible for covering the entire low-frequency range so that they meet the most demanding requirements.
