AS SUB²

Subwoofer 2 x 18"

29Hz - 200Hz (+/- 3dB)

Horn Loaded

Integral Flying System

2400W AES

98Kg

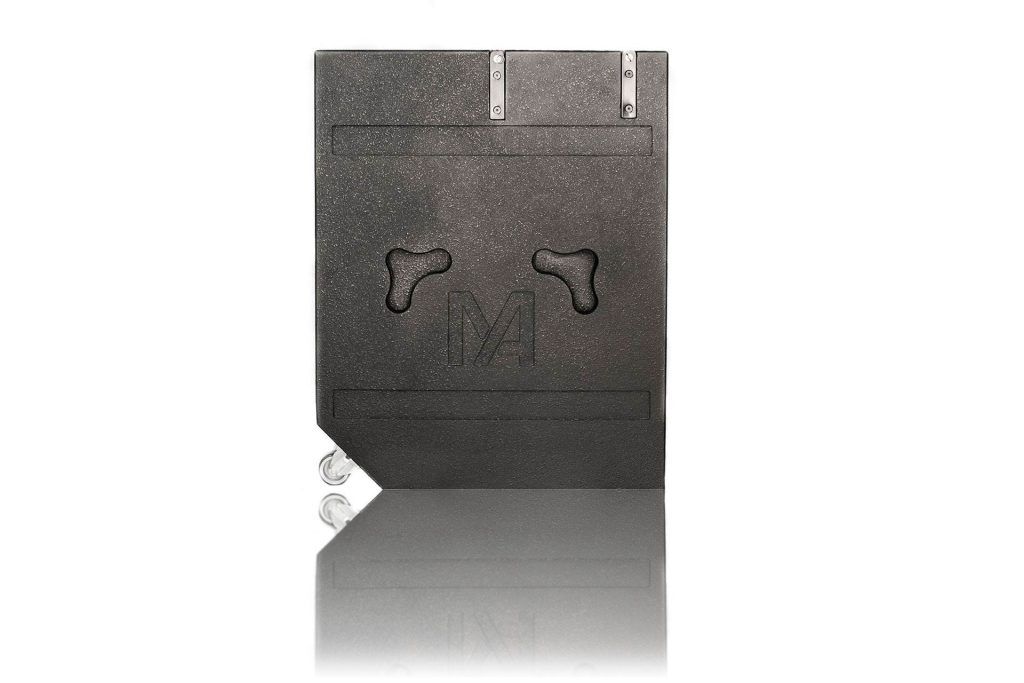

High-performance passive subwoofer that houses two 18″ speakers in horn loaded configuration. Mechanically designed to work in combination with other units in the AS range or to work in an independent stack on the floor.

With an extremely compact size and two specially designed high-performance speakers, its exceptional response from 29 Hz and its high SPL make the AS SUB2 the perfect complement to obtain powerful and clear bass in any circumstance.

The acoustic characteristics of the AS SUB2 include, as in the rest of the AS range, an extremely flat response throughout the working band providing perfect control of the response in any situation. Furthermore, mounted or flown in a stack of 3 units, it is can create cardioid arrays using specifically designed DSP software.

Each AS-SUB2 unit is made of Finnish Birch plywood, finished in matte black fireproof Epoxy paint, with stainless steel screws and with the transducer protected by a specially designed and laser cut steel grill, the AS-SUB2 It is prepared to withstand inclement weather with an IP 45 rating.

As in other models in the range, the AS-SUB2 has a large number of accessories for flying, staking and transport; as well as a RAL color chart to choose from, which complete a practical and functional subwoofer.

ESPECIFICAtions SUB²

Frequency response

29 Hz-200Hz (+- 3Db)

Impedance

Power handling

2400W AES

SPL continuous*/peak**

135 / 147Db

Configuration

2 x 18” horn loaded

Connection

2 x 4 polos Speackon Neutrik

High

1060mm.

Width

580mm.

Depth

824mm.

Weight Kg

98.5Kg

Construction

Finnish Birch Plywood 18mm

Rack

Laser perforated steel and acoustic foam

Rigging

4 attachment points

Finish

RAL color chart

Options

Colores carta RAL

* :Calculated 1W/1 m.

**: Peak SPL measured with pink noise and crest factor 4

OUR AS SERIES, CONCEIVED AND CREATED TO BE FLEXIBLE IN ALL TYPES OF FOH APPLICATIONS

A family made up of the AS-X and AS-C models, intended for the treatment of medium and high frequencies; and, secondly, the AS-SUB and AS-SUB2 models, which are responsible for covering the entire low-frequency range so that they meet the most demanding requirements.
