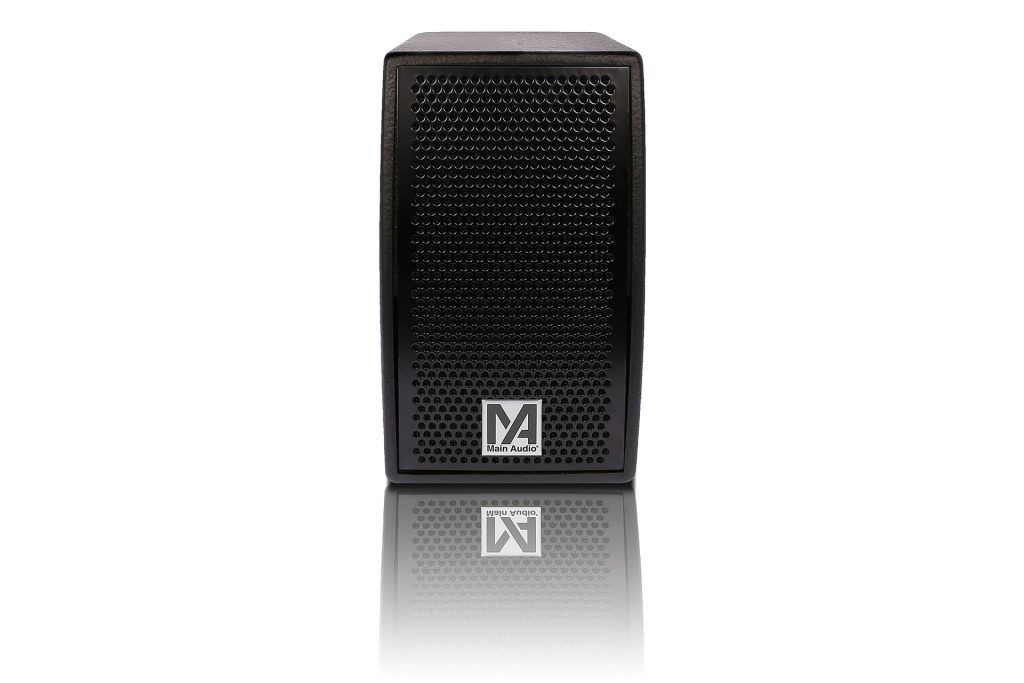

CS 5

PASSIVE POINT SOURCE 5”

FERROFLUID TWEETER

120° HORIZONTAL DISPERSION

150W AES

5Kg

Passive point source unit with a high-power 5″ speaker and a ferrofluid-cooled dome tweeter, with a 120º conical coverage allows the cabinet to be installed in any position, resulting in a speaker with an exceptionally powerful and warm sound. in relation to its size.

The CS 5 can be installed independently or in the company of different subwoofers in the series.

Made of 9mm Finnish birch plywood, with a laser-cut steel front grille lined with acoustic foam and components treated against humidity, the CS 5 is prepared to withstand inclement weather with an IP 45 rating.

Capable of offering a high level of SPL, the CS 5 is ideal if what is needed is power and quality but with a reduced size, it can be chosen with Euroblock terminals or Speakon NL4 connectors and in two different impedances (8Ω/16 Ω) .

Both the enclosure and the acoustic foam and the rest of the accessories can be manufactured in any RAL color with a fireproof epoxy paint finish or in any color from the Glasurit menu with three-layer finishes and ceramic varnish.

ESPECIFICAtions CS5

Frequency response

79Hz-20k Hz (+/- 3dB)

Impedance

8Ω/16Ω

Impedance

150W AES

SPL continuous*/peak**

114 / 126dB

Configuration

5” + Tweeter

Horizontal nominal coverage​

120º

Connection

Euroblock / Neutrik® Speakon

High

285mm.

Width

170mm

Depth

175mm

Weight Kg

5Kg

Construction

9mm Finnish birch plywood

Finish

Matt black fireproof epoxy

Options: Signature®, RAL & Glasurit Colours Charts, IP Versions, Instalation accesories.

15mm Finnish birch plywood

**: Peak SPL measured with pink noise and crest factor 4
